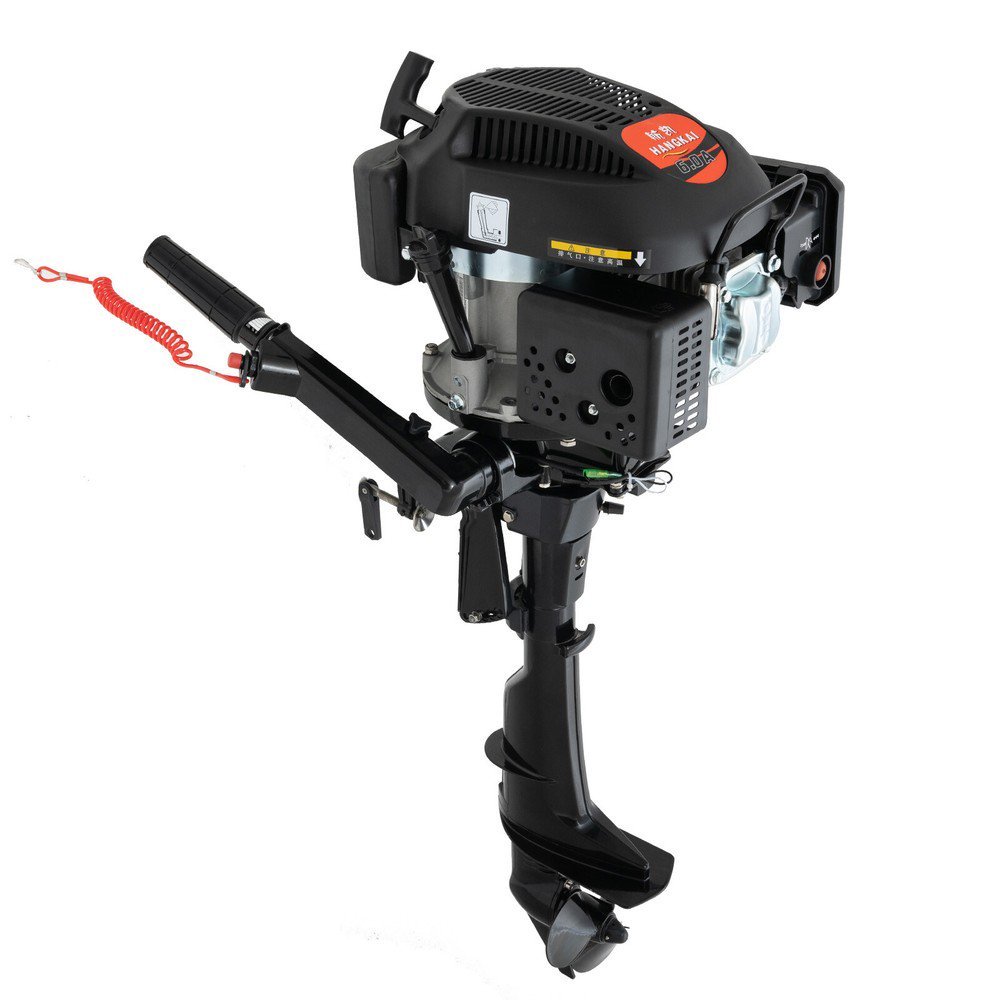

Description
Do you like fishing on the river? Do you want to go boating with your family? But are you worried about manual boating is too tired? With our outboard engine, you don’t have to worry about this problem. The 4-stroke 6 hp outboard engine provides enough power to drive the ship at a very fast speed. It will be your most powerful assistant when you are sailing at sea.

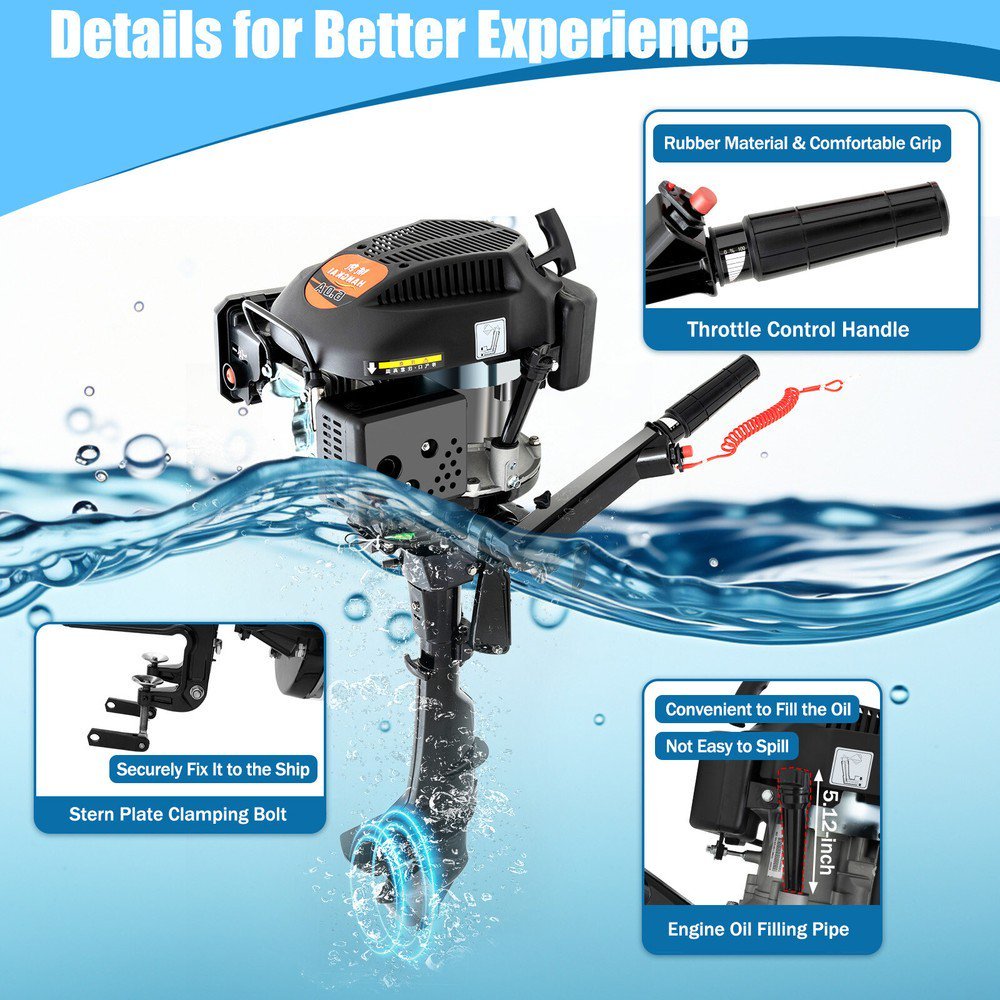

Details
Water Baffle: The water baffle above the propeller effectively reduce wave tossing and avoid water from wetting your clothes.
Mounting Clamp: The mounting clamp allows the outboard engine to be securely suspended on the stern plate with a thickness of within 1.57in.
Application
This product is suitable for small boats, such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is applicable to water operations in rivers, lakes, reservoirs, fish ponds, etc.

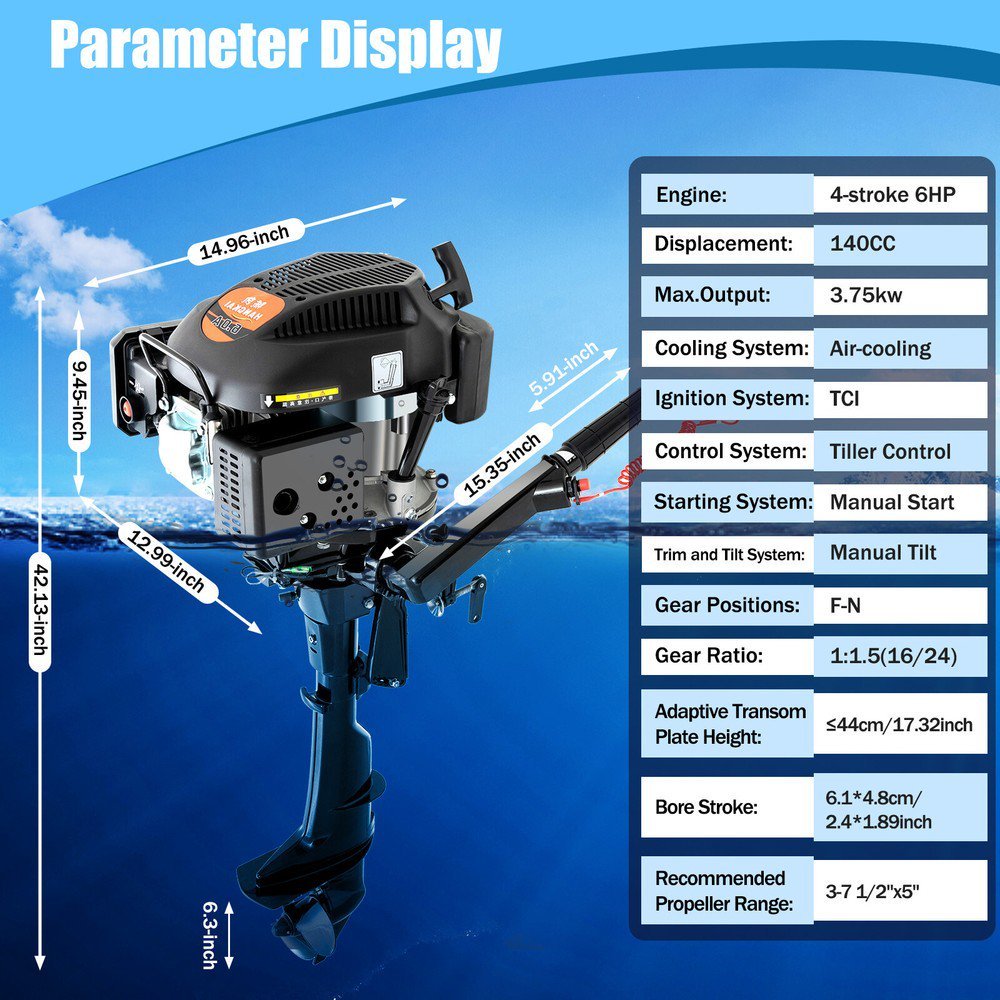

Specifications
Material: Plastic and Aluminium Alloy
Color: Black
Model: Single Cylinder
Max. Output: 6.0HP
Stroke: 4-stroke
Displacement: 140CC
Fuel Consumption: 1L/H (0.23gal/H)
Bore and Stroke: 61x48mm/2.4×1.88in
Gear Ratio: 1:1.5(16/24)
Max. Power: 3.75kw
Max. Speed: 4500-5500RPM
Speed: About 4-15km/h(2.49-9.32Miles/h)( Depending on the Environment, Water, Hull Load speed will be Different)
Ignition System:TCI
Startup Model: Hand Pull
Control System: Tiller Control
Cooling System: Air-cooling
Trim and Tilt System: Manual Tilt
Recommended Engine Oil: Outboard 4-stroke Engine Oil
Thrust:750kg/1653lbs
Recommended Propeller Range(in): 3-7 1/2″x5″
Gross Weight: 24.45kg/53.9lbs
Net Weight: 20.95kg/46.19lbs
Clamping Range: 0-4cm/0-1.57in
Product Size: 38*33*107cm/14.96*12.99*42.13inch
Built-in Fuel Tank Volume: 1.2L/0.31gal
Thrust Force: 750kg/1653lbs
Package Included
1* Outboard Engine
1* Funnel
1* English User Manual
All Accessories for Installation
Notes
1. Add gasoline and engine oil to the box accordingly. (a box to add gasoline and a box to add engine oil) Don’t mix the gasoline with engine oil.
2. Please note that the motor couldn’t reach the reverse gear.
3. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
4. Please note that the exact speed of travel depends on the shape of your boat, weight, water, wind and other factors.
5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
- 🌬️ Air-Cooled System for Longer Life – No need for water intake or cooling pump. Air cooling prevents overheating and reduces maintenance. Ideal for shallow waters, mud flats, or weedy areas where water cooling may clog. Runs clean and reliable.
- ⚙️ Simple F-N Gear & Variable Speed Control – Forward and neutral positions with throttle lever allow seamless direction changes. Twist-grip throttle offers infinite speed adjustment from idle to full power. Cruise control holds steady speed for trolling or long trips.
- 🔧 Quick Mount & Adjustable Trim – Complete mounting hardware included for easy installation on transoms up to 17.3 inches. Suspension tilt adjustment pin lets you fine-tune boat trim for stable running in varying water conditions. Anti-ventilation plate reduces cavitation for safer steering.
- 🛡️ Safety Features for Peace of Mind – Emergency stop lanyard instantly shuts off engine if operator falls overboard. Built-in overheat protection automatically stops the motor if temperature exceeds safe limits. Manual pull-start with reliable TCI ignition ensures easy starts every time.
- ⛽ Fuel-Efficient 4-Stroke Design – Runs on pure 92-octane gasoline – no oil mixing required. 1.2L built-in tank provides up to 1.2 hours of run time at full throttle. 140CC single-cylinder engine delivers 3.75kW power with low vibration and noise – perfect for small fishing boats, dinghies, and inflatables under 19.7ft.
